N3ZI Digital Dial Simple Kit

N3ZI Digital Dial
Simple Kit
This version is a simple kit for those who want all the parts for a 5.5MHz digital dial or frequency counter.
Contents of Simple Kit

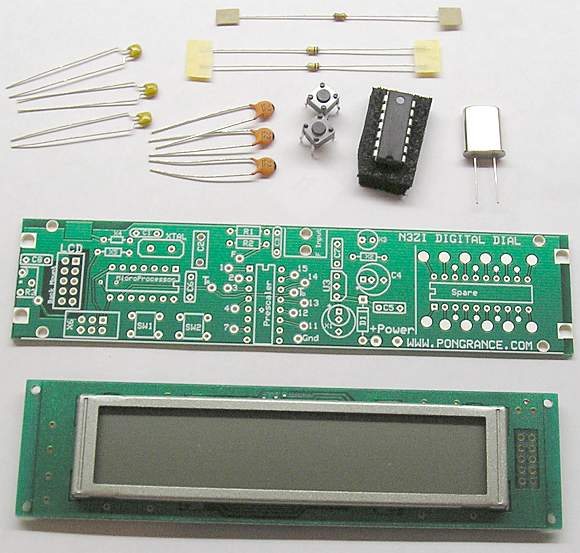

Above: Photo of your kit components as you will receive them
Pretty simple, huh? not much soldering to do.

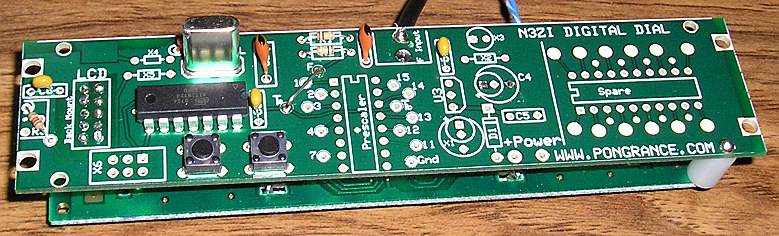

Below: Photo of assembled two board stack
PCB Stack

Everything on this schematic is included.
The PCB includes space for a prescaler chip and a 5v regulator that you can add later.
FULL kit also available

What's included:

LCD Module (assembled and tested)
PCB
Microprocessor (programmed)
Switches (2)
XTAL
22pF Capacitors (3)
0.1uF Capacitors (3)
100k Resistor (2)
10K Resistor (1)

What you need to supply:

Wire & Solder
Connectors if you want them
3.3 to 5v regulated power source

Pricing and ordering info on this page
