N3ZI LCD Digital Dial Full Version

N3ZI LCD Digital Dial
Full Version

NEW: All kits shipped after Dec 1, 2009 include new firmware that supports 9 different IF offsets.

Features & Specifications:

Jumper selectable prescaler, 0,2,4,8,16

Guaranteed to count to 55 MHz, typically works to 100 MHz

Allows resolution of up to 10 Hz (to 44 MHz)

Allows High Speed update (10x second) up to 22 MHz

All components show on the schematic below included in kit, including PCB.
You supply, solder & wire only.
No surface mount components to solder.
Simple, straight through connections to LCD module.
Operates from 8-15v power source, 3-4 mA Current draw.
Programmable IF frequency, and VFO mode (VFO+IF, VFO-IF, IF-VFO)

9 Different IF offsets Supported

2 pushbuttons included for programming IF and Formula.
All programmable options stored in non volatile EEPROM, so they only have to be set once.
Requires approx. 300mV rms. to count.
uCode, includes anti jitter s/w which prevents LSD from jittering between two values.

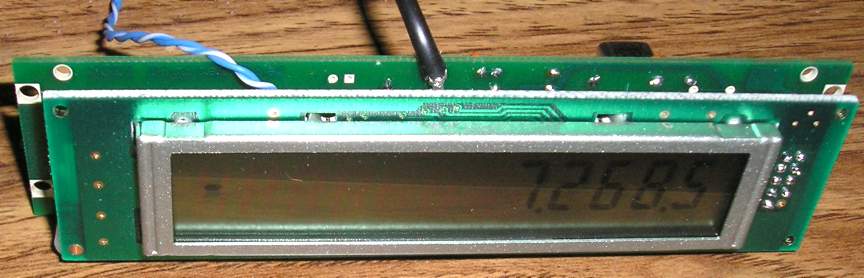

Displays operating Frequency up to 199 MHz.
32 bit internal math
State of the art RoHS compliant PCB (Quality Specs)
Kit includes RCA input jack.

Kit includes everything shown in this photo, except wire and solder.

To ORDER, use this page

Questions? Email me Other Options, Main Web Page

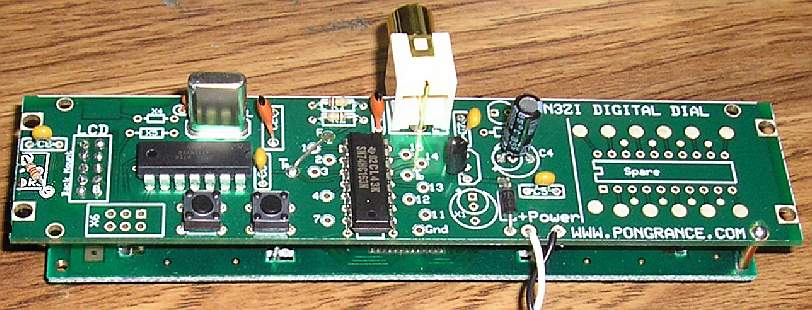

Additional features (holes) on PCB for bells and whistles
(These are rather esoteric items, intended for advanced users, components not included in kit, not needed and not shown on the schematic above)

Atmel programming connector (6pin header for connection the Atmel's AVR USB programmer)
Rotary or slider contrast pot. (Used if you want to view LCD from a variety of angles, below, and above)
Connecterizable LCD module connections. (Accepts 10 pin headers if you want to remote the display from the controller)
Extra input electrolytic cap to allow 8-12 VAC power operation.(D1 will act as half wave rectifier, an AC wall wart can be used for power)
Spare IC location for prototyping. (get creative)
Power on LED and resistor.
Larger holes for Trimmer Cap in place of C2 (for fine tweak)
Support for different Prescaler chips, including 74HC4017 and 74HC390
